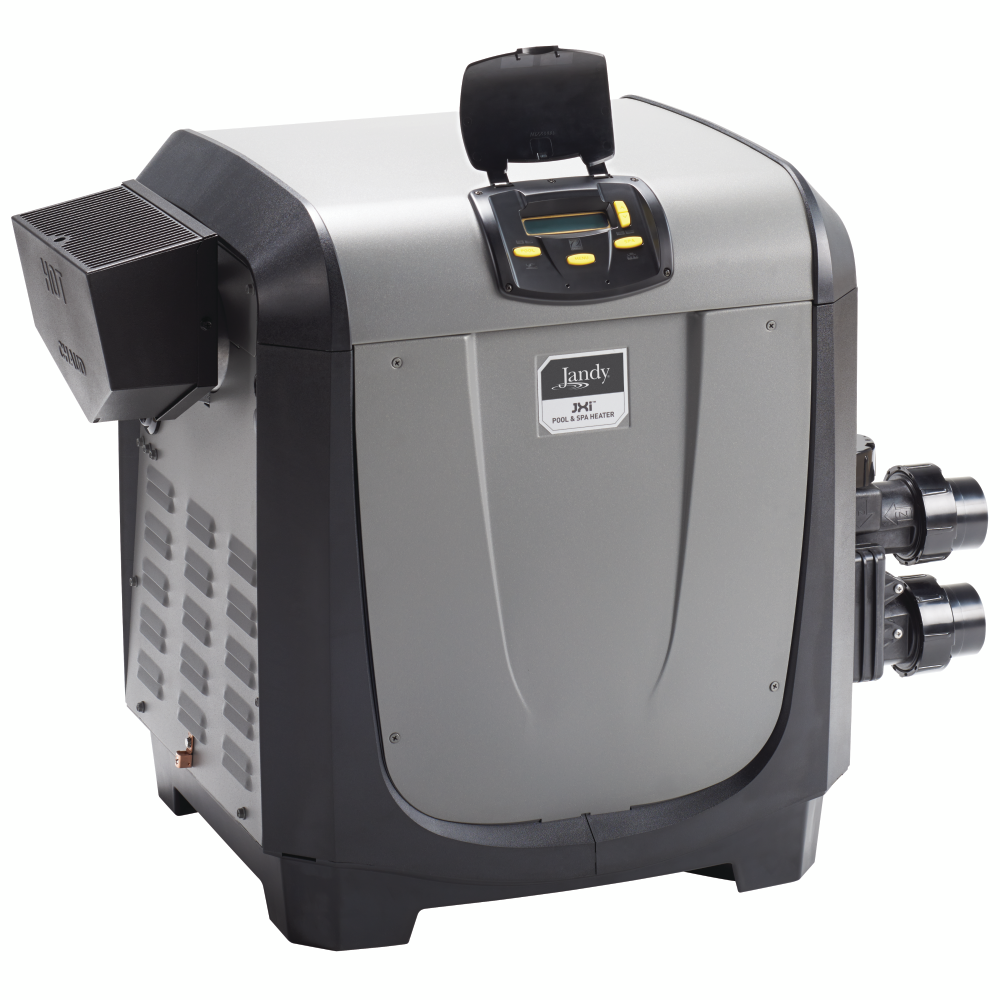

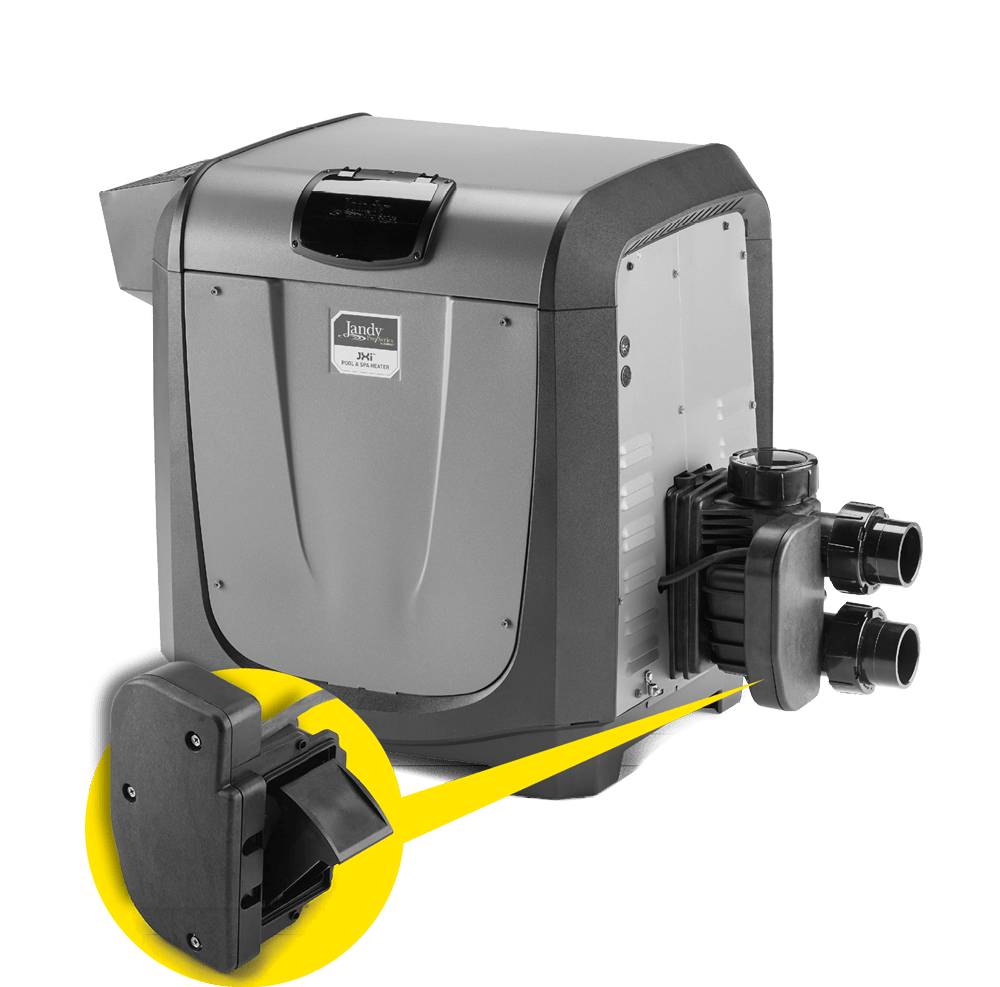

JANDY JXI GAS POOL HEATER, AVAILABLE WITH VERSAFLO BYPASS
AN ULTRA-COMPACT AND ENERGY-EFFICIENT GAS POOL HEATER

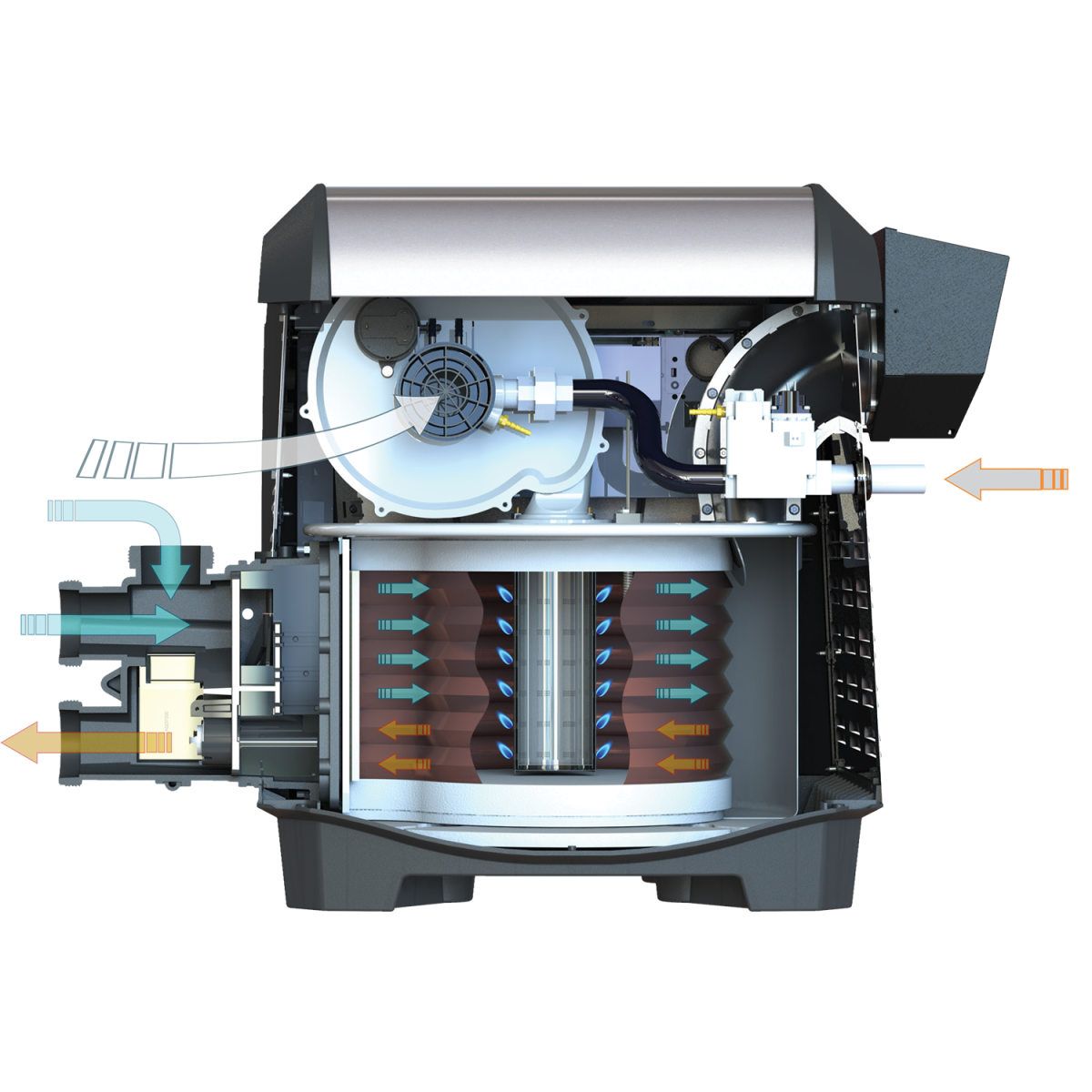

The JXi™ heater sets the standard in pool and spa heating with unsurpassed energy-efficiency and optional cost-saving Integrated Bypass technology that diverts water flow away from the heater when there is no call for heat. Boasting an 84% thermal efficiency rating and a low-NOx design, the JXi is available in both natural and propane gas models. The JXi also features advanced automation compatibility with AquaLink® systems and iAquaLink™ control, for anytime, anywhere convenience, and an ultra-compact, lightweight design, that allows for faster and easier installation—making it a top choice for pool professionals and pool owners everywhere.
Rheem Digital Natural Gas or Propane Heater
PolyTuf Textured Powder Coating
The Rheem gas heater has a polyester-coated, non-corrosive cabinet that is more durable than solventborne- and waterborne-coated metal cabinets. Every piece of sheet metal goes through a 7-stage wash system, making certain the powder paint has a perfect bond. Underneath the tough, yet beautiful finish you will find galvanized metal that offers superior rust prevention and years of durable service
Wind-Resistant Design
This heater is designed to draft
naturally in outdoor installations with its exclusive low-profile design. It is so thoughtfully and carefully designed it actually protects itself from the things that tend to stifle ordinary pool and spa heaters. It delivers uninterrupted heating performance regardless of falling leaves, wind, airborne debris, rain, downdrafts, updrafts, sleet, snow, etc.
Polymer Headers
Polymer headers prevent rust stains from harming your pool’s surface, giving you years of trouble-free swimming pleasure
All-Copper-Fin-Tube Heat Exchanger
The fin tubes of the heat exchanger are each made from a single piece of extruded copper. This integral-fin design allows maximum heat transfer to be attained and maintained. Cupro-nickel is also available as an optional upgrade.
Skyview Pools stocks the cupro-nickel in the 206A & 266A models
Stainless Steel Tube Sheet
Stainless steel tube sheets are used on all Rheem gas heaters. This allows for a completely nonferrous waterway, leaving your pool truly rust-free
CPVC 2″ Water Connections
Standard with every Rheem is a set of 2″ slip-fit CPVC water connections to make your installation secure and effortless
Condensation Protection
The Unitherm Governor helps reduce condensation from low inlet water temperatures. It automatically regulates the water flow to help keep the water temperature in the heat exchanger above 105°F. Both water temperature and water flow rate are controlled to eliminate condensation, sooting, and scale build-up that can shorten heater life
High Flow Rates
The Rheem gas heater comes with an automatic bypass built into the header. You’ll find that the heater is capable of handling water flow at a rate up to 125 gpm
Burner Tray
Every burner tray is built to last, from the stainless steel burners to the aluminized metal used in the heat sensitive areas. Innovative design allows for the easy removal of the tray and burners for servicing
Fire Tile
A ceramic fiber combustion box keeps your heater running efficiently while keeping the outside jacket cool. By using this space-age material the heater won’t retain residual heat after it is turned off, allowing it to be installed without the use of costly metal heat sinks.
Fuel-Efficient
Energy-smart Rheem heaters consistently achieve the highest efficiency ratings. They exceed all federal and state standards.
Avia Model
Heat Smarter, Play Harder
Managing your pool heater has never been easier or smarter. AVIA is built with an innovative Wi-Fi enabled control system that allows you to manage your pool heater and one accessory through the Raymote app. No need for a separate control panel to manage your pool heater.
Smarter Controls
Managing your pool heater has never been easier. AVIA is built with a sophisticated control system that allows you to manage your heater through its easy to use touch control interface.
Click here for Rheem Manufacturer Brochure
Click here for Smaller 106 & 156 Model Brochure
Click here for Avia Model Brochure
Hayward Universal H-Series Natural Gas or Propane Heater
The Universal H-Series is an energy efficient, high performance, installation adaptable commitment to the pool service professional.
- Standard cupro nickel heat exchanger
- Excellent salt water and chemical corrosion resistance
- Exclusive “Totally Managed” cupro nickel heat exchanger water flow
- Same water velocity through all tubes for faster heating
- Patented header by-pass design
- Up to 18 percent savings by reducing pump run-time
- 2in x 2 1/2in CPVC union plumbing connections
- Common union for installation or service, adapts to larger plumbing recommended for greater efficiencies
- Low NOx emissions – meets clean air quality standards
Click here for Manufacturer Brochure
Hayward HeatPro Electric Heat Pump
High performance, energy-efficient HeatPro heat pumps quietly and economically maintain the ideal water temperature at all times. HeatPro features the industry’s only standard Ultra Gold corrosion resistant evaporator fin which provides extreme durability, especially in coastal environments. It’s compact design allows for easy installation and service on new or existing pools.
- Titanium Heat Exchanger – excellent salt water and chemical corrosion resistance
- Exclusive ‘Ultra Gold’ evaporator coil corrosion resistant especially in coastal areas
- Quiet operation – quiet backyard environment
- AHRI certified performance – independent lab certified performance ensures value of purchase
- 2in x 2 1/2in CPVC union plumbing connections – common union for installation or service, adapts to larger plumbing recommended for greater efficiencies
- Light weight – less than 250 lbs.
