Above Ground Steps & ladders

curvewithaddon

Curve Inpool Step System

  • Start with the base step unit (staircase) and then expand into a complete Curve system at any time
  • Curve system has the sweeping “wedding cake” look that many homeowners want in a pool step
  • Four tread unit is for above ground pools
  • Above ground unit can be assembled with treads curving inwards or outwards depending on customer preferences
  • Eye-catching, graceful sloping handrails
  • Two tone color – grey treads with warm grey (beige) sidewalls and handrails. Complements any swimming pool!
  • Adjustable base pads to compensate for a slightly-dished pool floor
  • Weighed down by adding 20lbs of sand to the sidewalls
  • Weight limit – 400 lbs.
  • Tread width – 27”
  • Tread depth – 10”
  • Riser height – 11”
  • Unit depth – 32”
  • Handrail height (from top step) – 30”
  • Height to top tread – In ground 36” – Above ground 47”
  • Mounting bracket length – 24”
  • Overall outside width – 38”
  • Complete Curve System width – 58”
  • 5 year full factory warranty on manufacturing defects and workmanship

Step-1x Inpool Steps

  • For above ground pools with flat bottoms.
  • Easy, snap together installation
  • Can be shipped via UPS/RPS
  • Large, flat steps (each with 270 square inches) complete with two all-plastic handrails
  • Mounting brackets included; secures unit to pool or deck
  • Gray steps for high visibility in water
  • Economical, yet strong; holds 400 pounds.
  • Improved base system
  • 5 year full factory warranty on manufacturing defects and workmanship
  • Fits Decks up to 60″
  • Height to Top Step – 47 inches
  • Height to Handrail – 38 inches
  • Projection into Pool – 32 inches
  • Width – 31 inches
  • Riser Height – 11 inches
  • Step Dimensions – 10″ x 27″

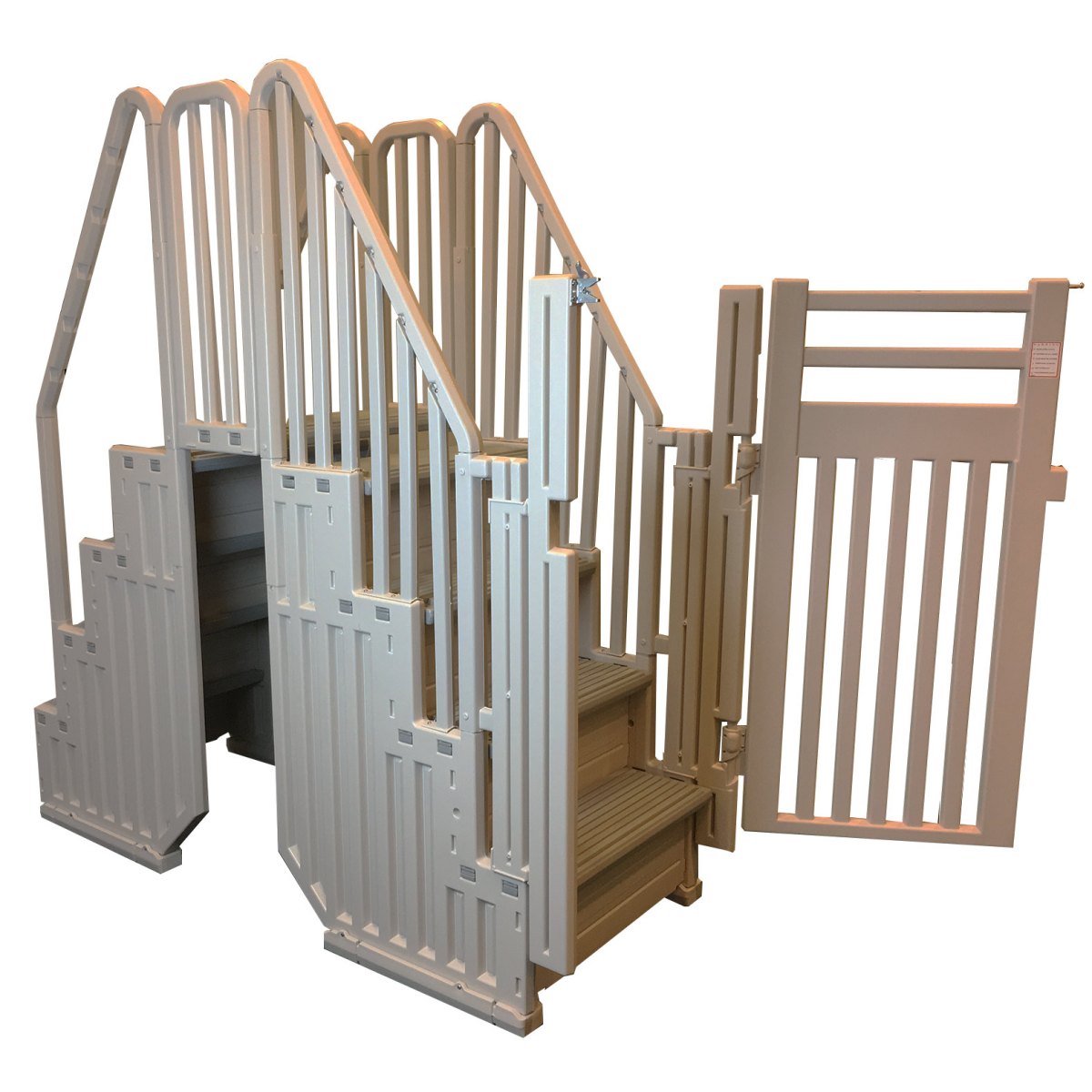

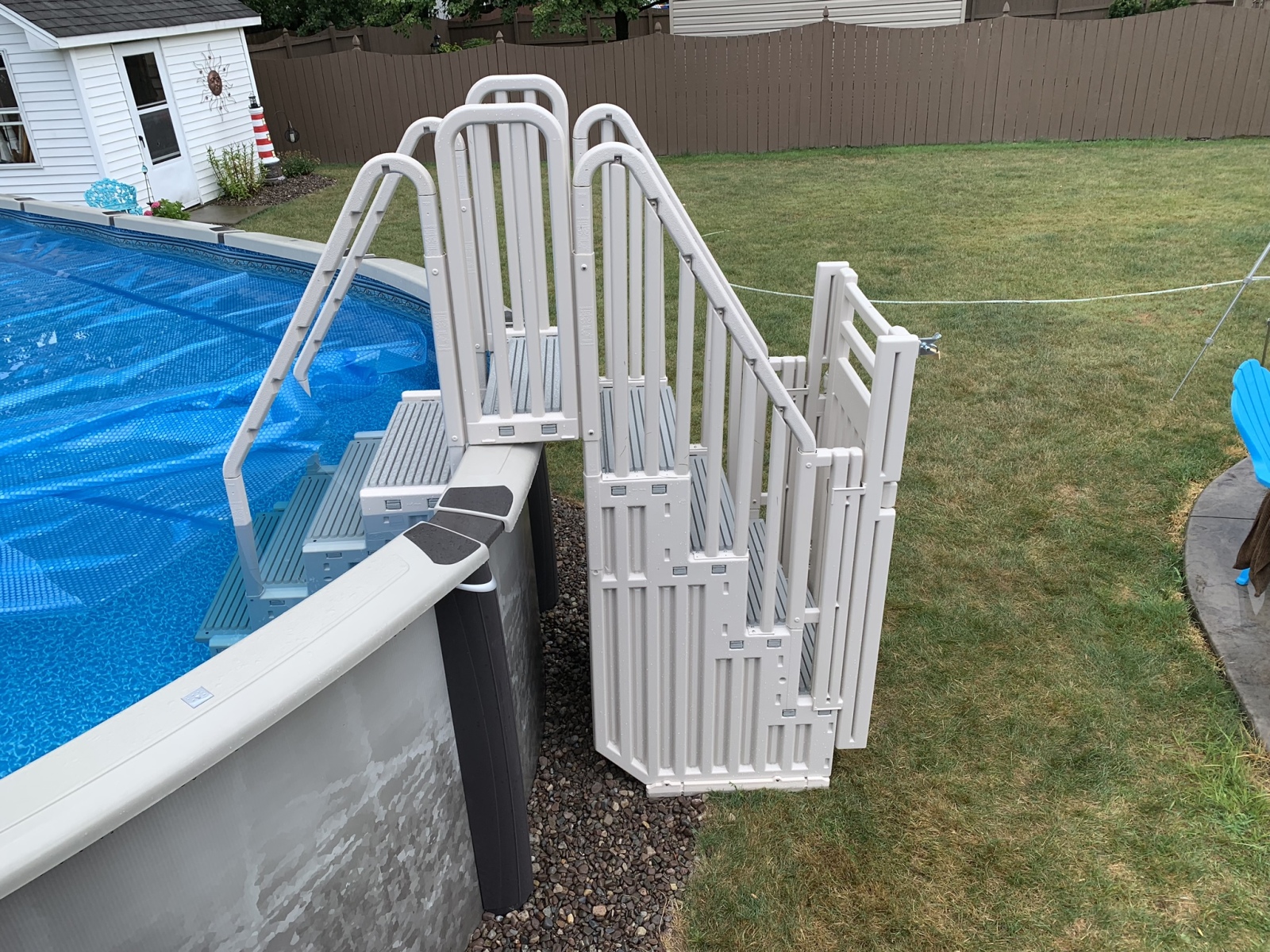

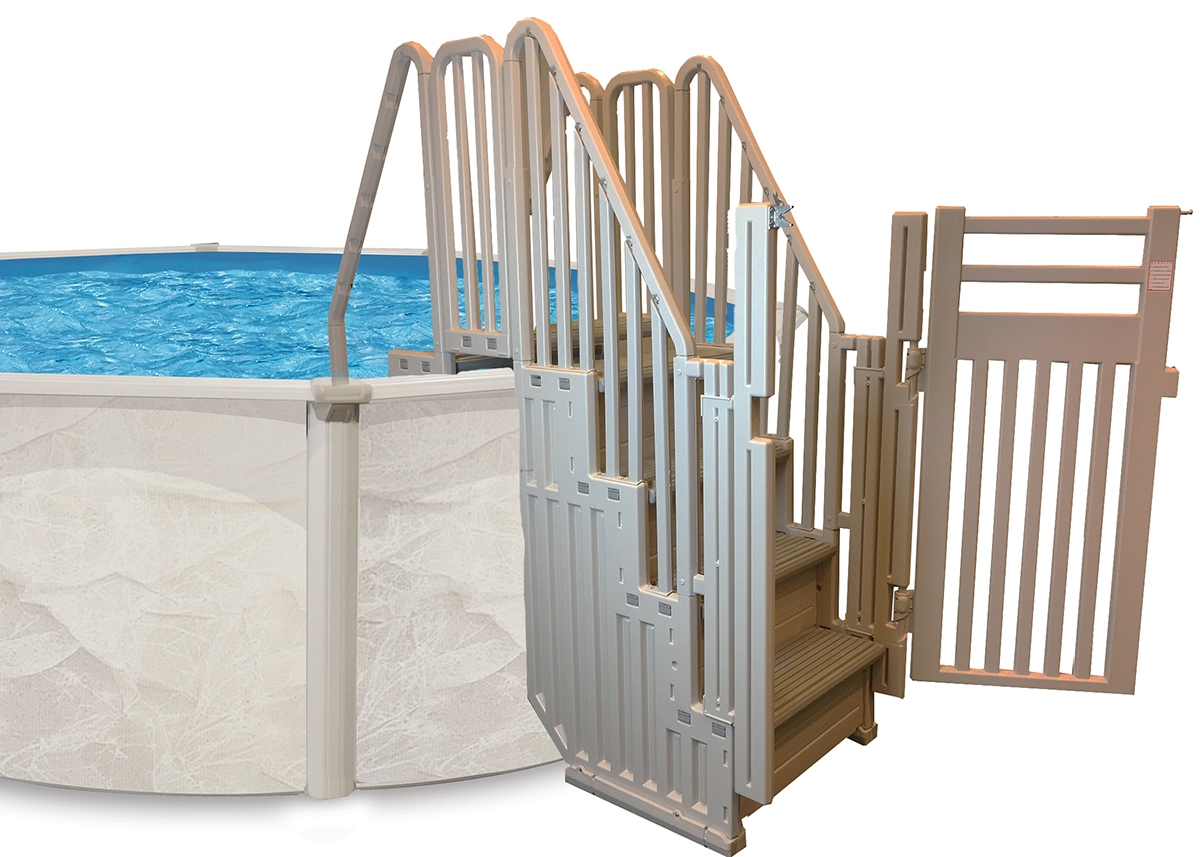

PES Pool Entry System (Limited Availability)

  • The unique design of the pool entry system allow two units to be joined together to form a complete entry/exit system into the pool. Designed for all people including elderly swimmers and physically challenged swimmers:
    • Five steps, instead of four.
    • Top step covers the pool top rail.
    • Meets current and proposed ANSI/NSPI Standards.
    • Easy assembly; steps and risers snap into side panels and are held in place with plastic wedges. No metal parts.
    • Non-slip step surfaces are grey for high visibility.
    • Adjusts to fit 48″ to 54″ tall pools and decks.
    • Excellent for elderly, slightly handicapped, or heavy swimmers. Holds over 400 pounds.
    • Does not rest on or attach to pool.
    • All plastic construction will not affect water chemistry and will not corrode.
    • Gate restricts access to the pool. It is self-closing and self-latching.
    • Includes deck connector for easy attachment to deck.
    • Fits decks up to 54″ or can fit taller decks using special mounting instructions.
    • 5 year full factory warranty on manufacturing defects and workmanship
  • SPECIFICATIONS OF POOL ENTRY SYSTEM:
    • Overall Projection into pool – 36″
    • Overall height – 81″ (plus up to 6″ adjustability)
    • Overall width – 31″
    • Step – 10″ x 27″
    • Top Platform – 12″ x 27″
    • Handrail height (from top step) – 32″
    • Riser height – 11″
  • SPECIFICATIONS OF GATE:
    • Height of Gate – 58″
    • Width of Gate – 27″
    • Height of Latch – 57″
    • Gate Is Self-Closing & Self-Latching.
    • Includes Padlock.

6000X Eliminator Heavy-Duty Inpool Deck Ladder

  • Deluxe heavy-duty in-pool ladder
  • Totally adjustable for deck heights from 46″ to 54″
  • 5″ x 18″ wide
  • Flat treads for easier climbing
  • Includes deck platform
  • Warm grey side rails with grey treads for high visibility in water.
  • 10lbs of sand required for installation
  • Features an anti-entrapment barrier
  • Optional #6000X-EXT Extension Kit available to extend ladder to approximately 68 inches
  • Weight guideline: 300 lbs.
  • 5 year full factory warranty on manufacturing defects and workmanship

7000X Eliminator A-Frame Ladder

  • Warm gray color to complement today’s brown or gray tone pool
  • Eliminator A-Frame Ladder for 48” to 54” pools
  • Ladder must be attached to pool frame -not for use on soft-sided/inflatable pools
  • Superior Heavy-duty construction
  • Padlock for outside treads swing up treads included for security
  • No sand or bricks are required to prevent floating; fills with water
  • Outer treads can be padlocked (cable lock included)
  • Elongated treads measure 5” x 18” wide
  • Extended 14″ Deck
  • Meets 2018 ISPSC 702.2.1 barrier requirements
  • Five-year warranty
  • Weight limit: 300 lbs.

7100X Evolution A-Frame Ladder

  • Warm gray color to complement today’s brown or gray tone pool
  • Economical yet full-featured A-Frame Ladder
  • Adjustable to fit 48” to 54” high pools
  • The ladder must be attached to pool frame – not for use on soft-sided/inflatable pools
  • Each side adjusts independently
  • Snap-lock treads for quicker, easier assembly
  • Five treads on each side
  • Swing-up outer treads for safety
  • Outer treads can be padlocked (padlock included)
  • Full 16” inside tread width
  • 12″ Deck
  • Strong sturdy design
  • Large top platform
  • Minimal hardware
  • No sand or bricks required; fills with water
  • Meets 2018 ISPSC 702.2.1 barrier requirements
  • Five-year warranty
  • Weight limit: 300 lbs.

7200 Roll-Guard A-Frame Safety Ladder

  • Aesthetically pleasing contemporary design in beautiful warm gray color
  • Large 5-inch x 18-inch wide Comfortreads
  • Curved side rails designed with strength in mind
  • Inner side rails include integrated side barriers to prevent entry behind the ladder
  • Easy assembly with minimal hardware
  • Adjusts to fit pools 48” to 56” tall
  • Lockable Roll-Guard Barrier (lock included)
  • Extra-large top platform
  • Just fill side rails with water to prevent floating, no sand or bricks needed
  • Fits pool top seats up to 14 inches wide
  • The ladder must be attached to the pool frame -not for use on soft-sided/inflatable pools.
  • Convertible to in-pool ladder using CK7200 kit – sold separately
  • 300lb Weight Limit
  • 5 year full factory warranty on manufacturing defects and workmanship
