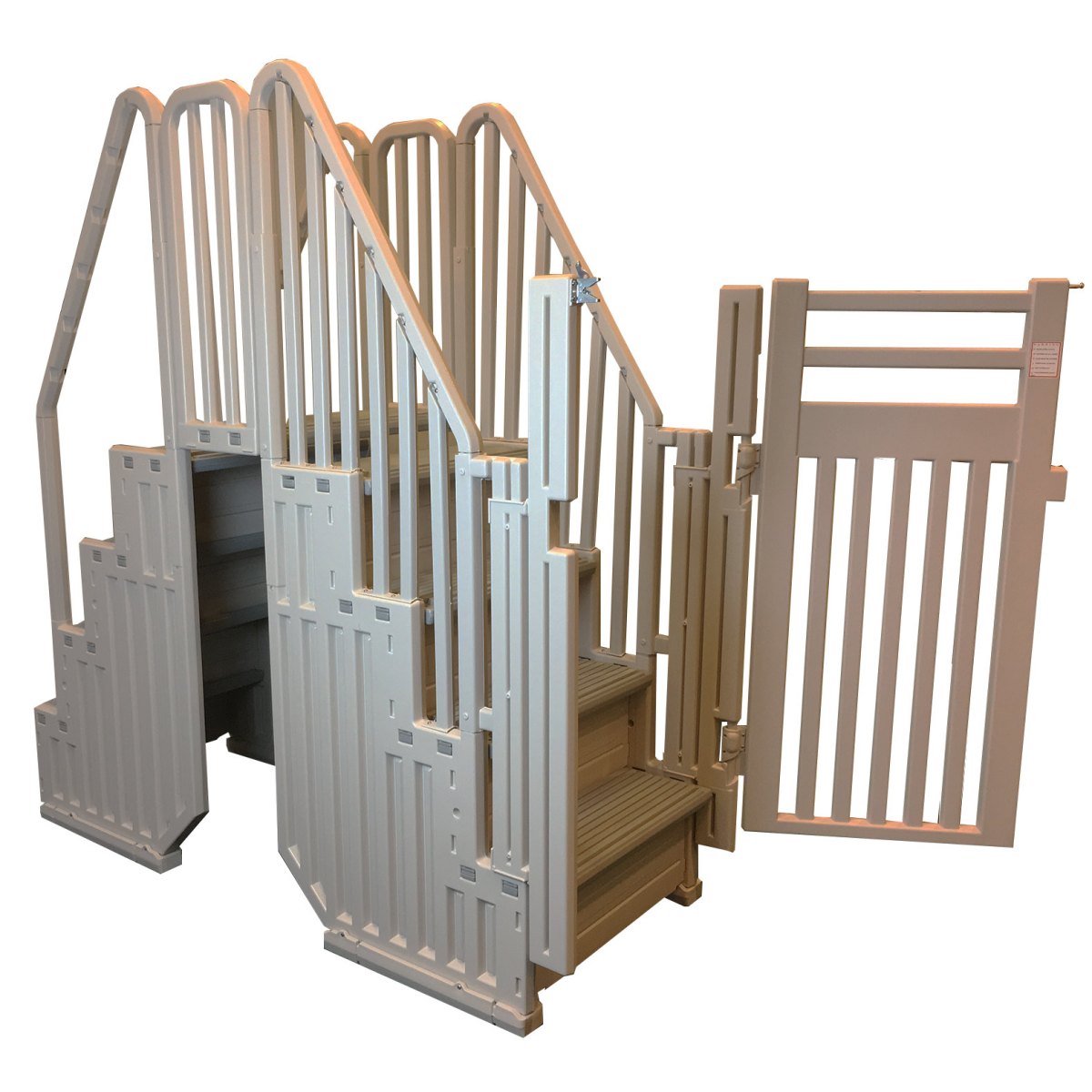

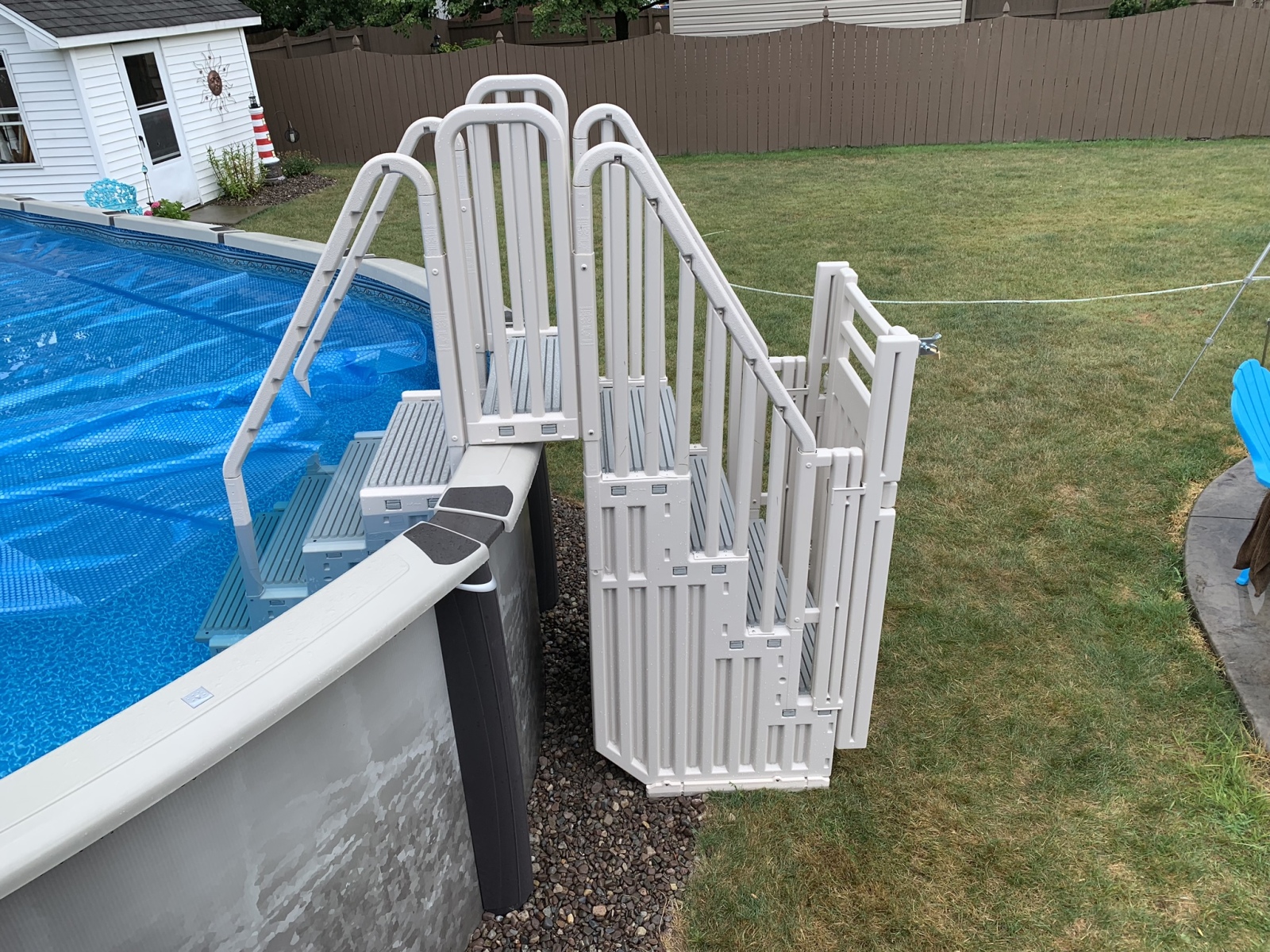

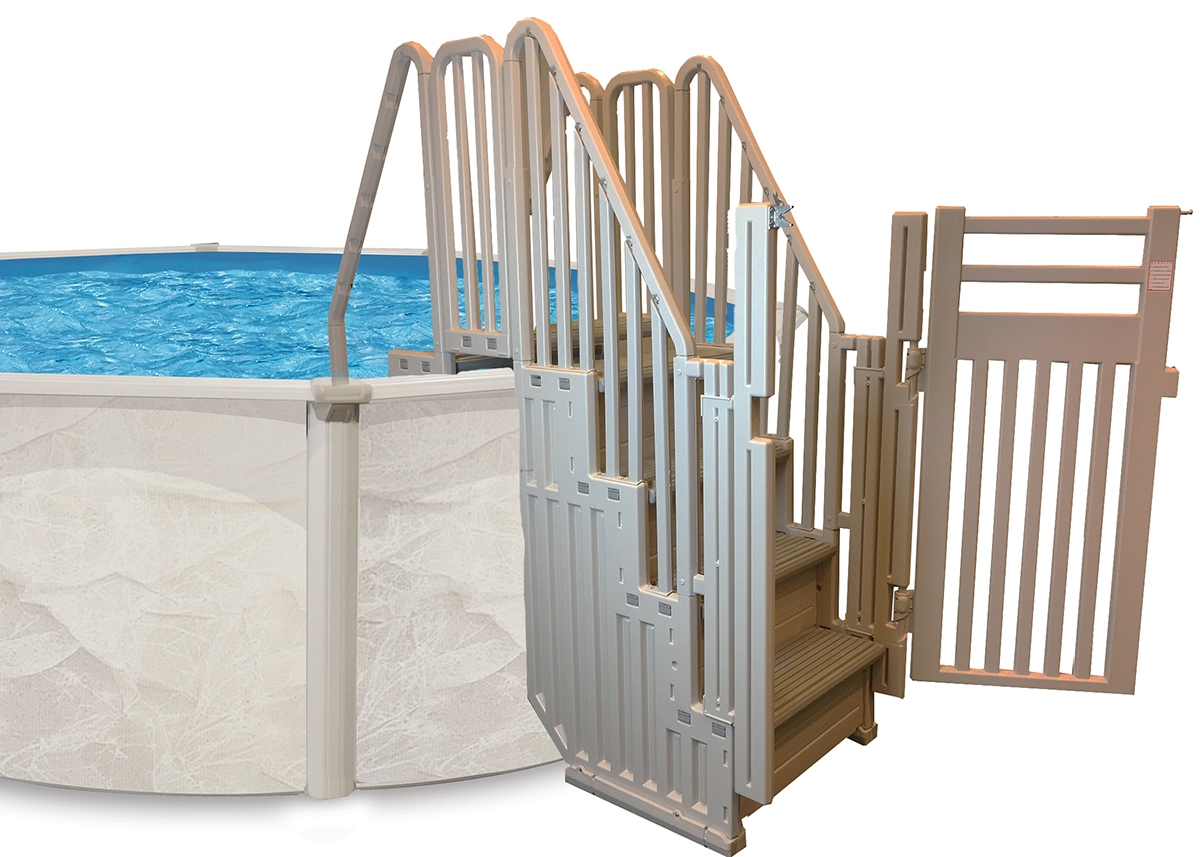

Double Step-1x Step System with Enclosure Kit & Gate
Connect and enclose two Confer Step-1Xs for an economical entry system.
Fits 48″ to 54″ pools.
Consists of 2 Step-1x Inpool Steps, top platform, two side rails, pickets, and a gate. The gate completely encloses the steps for security and is self-enclosing and self-latching.
Padlock Included
5 year full factory warranty on manufacturing defects and workmanship
Built in compliance with ISPSC 2021
Step-1x Inpool Steps
For above ground pools with flat bottoms.
Easy, snap together installation
Can be shipped via UPS/RPS
Large, flat steps (each with 270 square inches) complete with two all-plastic handrails
Mounting brackets included; secures unit to pool or deck
Gray steps for high visibility in water
Economical, yet strong; holds 400 pounds.
Improved base system
5 year full factory warranty on manufacturing defects and workmanship
Fits Decks up to 60″
Height to Top Step – 47 inches
Height to Handrail – 38 inches
Projection into Pool – 32 inches
Width – 31 inches
Riser Height – 11 inches
Step Dimensions – 10″ x 27″
Curve Inpool Step System
Start with the base step unit (staircase) and then expand into a complete Curve system at any time
Curve system has the sweeping “wedding cake” look that many homeowners want in a pool step
Four tread unit is for above ground pools
Above ground unit can be assembled with treads curving inwards or outwards depending on customer preferences
Eye-catching, graceful sloping handrails
Two tone color – grey treads with warm grey (beige) sidewalls and handrails. Complements any swimming pool!
Adjustable base pads to compensate for a slightly-dished pool floor
Weighed down by adding 20lbs of sand to the sidewalls
Weight limit – 400 lbs.
Tread width – 27”
Tread depth – 10”
Riser height – 11”
Unit depth – 32”
Handrail height (from top step) – 30”
Height to top tread – In ground 36” – Above ground 47”
Mounting bracket length – 24”
Overall outside width – 38”
Complete Curve System width – 58”
5 year full factory warranty on manufacturing defects and workmanship
PES Pool Entry System (Limited Availability)
The unique design of the pool entry system allow two units to be joined together to form a complete entry/exit system into the pool. Designed for all people including elderly swimmers and physically challenged swimmers:
Five steps, instead of four.
Top step covers the pool top rail.
Meets current and proposed ANSI/NSPI Standards.
Easy assembly; steps and risers snap into side panels and are held in place with plastic wedges. No metal parts.
Non-slip step surfaces are grey for high visibility.
Adjusts to fit 48″ to 54″ tall pools and decks.
Excellent for elderly, slightly handicapped, or heavy swimmers. Holds over 400 pounds.
Does not rest on or attach to pool.
All plastic construction will not affect water chemistry and will not corrode.
Gate restricts access to the pool. It is self-closing and self-latching.
Includes deck connector for easy attachment to deck.
Fits decks up to 54″ or can fit taller decks using special mounting instructions.
5 year full factory warranty on manufacturing defects and workmanship
SPECIFICATIONS OF POOL ENTRY SYSTEM:
Overall Projection into pool – 36″
Overall height – 81″ (plus up to 6″ adjustability)
Overall width – 31″
Step – 10″ x 27″
Top Platform – 12″ x 27″
Handrail height (from top step) – 32″
Riser height – 11″
SPECIFICATIONS OF GATE:
Height of Gate – 58″
Width of Gate – 27″
Height of Latch – 57″
Gate Is Self-Closing & Self-Latching.
Includes Padlock.
6000X Eliminator Heavy-Duty Inpool Deck Ladder
Deluxe heavy-duty in-pool ladder
Totally adjustable for deck heights from 46″ to 54″
5″ x 18″ wide
Flat treads for easier climbing
Includes deck platform
Warm grey side rails with grey treads for high visibility in water.
10lbs of sand required for installation
Features an anti-entrapment barrier
Optional #6000X-EXT Extension Kit available to extend ladder to approximately 68 inches
Weight guideline: 300 lbs.
5 year full factory warranty on manufacturing defects and workmanship
7000X Eliminator A-Frame Ladder
Warm gray color to complement today’s brown or gray tone pool
Eliminator A-Frame Ladder for 48” to 54” pools
Ladder must be attached to pool frame -not for use on soft-sided/inflatable pools
Superior Heavy-duty construction
Padlock for outside treads swing up treads included for security
No sand or bricks are required to prevent floating; fills with water
Outer treads can be padlocked (cable lock included)
Elongated treads measure 5” x 18” wide
Extended 14″ Deck
Meets 2018 ISPSC 702.2.1 barrier requirements
Five-year warranty
Weight limit: 300 lbs.
7100X Evolution A-Frame Ladder
Warm gray color to complement today’s brown or gray tone pool
Economical yet full-featured A-Frame Ladder
Adjustable to fit 48” to 54” high pools
The ladder must be attached to pool frame – not for use on soft-sided/inflatable pools
Each side adjusts independently
Snap-lock treads for quicker, easier assembly
Five treads on each side
Swing-up outer treads for safety
Outer treads can be padlocked (padlock included)
Full 16” inside tread width
12″ Deck
Strong sturdy design
Large top platform
Minimal hardware
No sand or bricks required; fills with water
Meets 2018 ISPSC 702.2.1 barrier requirements
Five-year warranty
Weight limit: 300 lbs.
7200 Roll-Guard A-Frame Safety Ladder
Aesthetically pleasing contemporary design in beautiful warm gray color
Large 5-inch x 18-inch wide Comfortreads
Curved side rails designed with strength in mind
Inner side rails include integrated side barriers to prevent entry behind the ladder
Easy assembly with minimal hardware
Adjusts to fit pools 48” to 56” tall
Lockable Roll-Guard Barrier (lock included)
Extra-large top platform
Just fill side rails with water to prevent floating, no sand or bricks needed
Fits pool top seats up to 14 inches wide
The ladder must be attached to the pool frame -not for use on soft-sided/inflatable pools.
Convertible to in-pool ladder using CK7200 kit – sold separately
300lb Weight Limit
5 year full factory warranty on manufacturing defects and workmanship
